Rapid Lowering Series Cable Ratchet Winch Hoists.
These hoists are designed to lower 4 times faster than our other hoists making your job that much quicker.
The Rapid Lowering Series feature models from 1000 to 4000 lb capacity.
|
Rapid Lowering Series Hoist Specifications |
|||||||||||
|
Model # |
Cable Dia. |
Handle Length Inches |
Single Line |
Double Line |
Hoist Weight Lbs. |
||||||
|
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
Capacity |
Lifting Dist. Feet |
Min. Hook to Hook Inches |
||||||
|
Lbs. |
Tons |
Lbs. |
Tons |
||||||||
|
LH 115R |
3/16 |
17-1/2 |
1000 |
1/2 |
15 |
18 |
– |
– |
– |
– |
7 |
|
LH 125R |
5/32 |
15 |
750 |
3/8 |
25 |
20 |
1500 |
3/4 |
12-1/2 |
23 |
8-1/2 |
|
LH 215R |
3/16 |
17-1/2 |
1125 |
9/16 |
15 |
20 |
2250 |
1-1/8 |
7-1/2 |
23 |
8-3/4 |
|
LH 238R |
3/16 |
22 |
1125 |
9/16 |
38 |
22 |
2250 |
1-1/8 |
19 |
29 |
13-3/4 |
|
LH 310R |
7/32 |
20 |
1500 |
3/4 |
10 |
20 |
3000 |
1-1/2 |
5 |
23 |
9 |
|
LH 330R |
7/32 |
25 |
1500 |
3/4 |
30 |
22 |
3000 |
1-1/2 |
15 |
29 |
13-3/4 |
|
LH 420R |
1/4 |
30 |
2000 |
1 |
20 |
22 |
4000 |
2 |
10 |
29 |
15-1/2 |

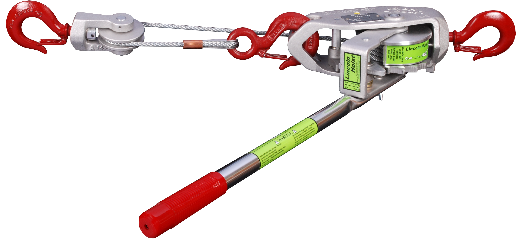

Model LH 310R shown
USA forged steel hooks
Highly flexible aircraft cable
Hydraulically crimped copper sleeve for more uniform hold
Reversible handle bends on overload
Interlocking pawl system
Cable shield protects cable and promotes even winding
All cable stores on drum
Oiled for life bearings
Easy to switch between rapid and standard lowering
