Lincoln Hoist Tension Meters


Lincoln Hoist tension meters have an analog mechanical design (no batteries or LCD) which improves performance in all conditions. LCD’s often fail in cold climates, can be difficult to read in bright sunlight and suffer from constantly changing readings. Lincoln meters solve those issues, and are much smaller than competing mechanical designs. Standard units come with installed fittings ready to hook up to hoist and wire grip.

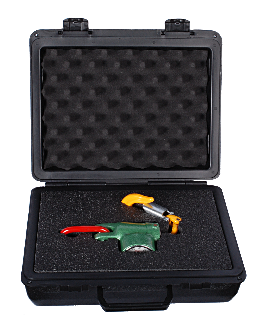

Meters are shipped in rugged ABS cases with laser cut foam interior for a snug and protective fit.

Model #

Capacity

Graduation

A

B

C

WT

WT2

A-10S

2,000 lbs

50 lbs

 5-1/2

5/8

13

1-7/8

3-1/4

A-20S

4,000 lbs

100 lbs

6-1/2

5/8

14

2-5/8

4-1/8

A-30S

6,000 lbs

100 lbs

10

1-1/8

17-3/4

4-3/4

8

A-50S

10,000 lbs

200 lbs

10-1/2

1-1/8

22

7-1/2

15

C dimension is overall length with end fittings

WT2 is meter weight including end fittings

A, B & C dimensions are in inches

Standard accuracy +/- 3% full scale
A B

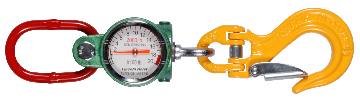

Lincoln Hoist tension meters come in 4 different capacities to fit your needs.

3 Ton

1 Ton

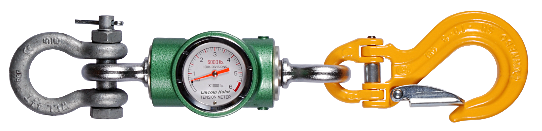

Gunnebo Johnson hooks are standard equipment on all 4 models.

2 Ton

5 Ton
